A Deep Dive into Our Piston Corer & Vibrocorer Sampling Capabilities
In offshore oil and gas exploration, soil sampling is a cornerstone of geotechnical drilling, providing critical data for designing safe and stable platforms. At OTS Offshore Trading & Services Co., Ltd, our advanced piston corer and vibrocorer sampling capabilities enable precise seabed analysis, delivering reliable soil data for EU and G7 projects. This technical article explores how we use these methods, their specific applications, advantages, and the real-world soil samples they produce, ensuring compliance with international standards like ISO 19901-8 (Marine Soil Investigations).
What Is Soil Sampling in Geotechnical Drilling?
Soil sampling involves collecting seabed sediment to analyze its physical and mechanical properties, such as shear strength, density, and composition. These properties inform foundation design, anchor stability, and pipeline routing for offshore structures. At OTS, we deploy two specialized methods—piston corer and vibrocorer—to obtain high-quality samples from various seabed conditions, from soft clays to dense sands.
Piston Corer: Precision for Soft Sediments
When to Use Piston Corer
The piston corer is ideal for sampling soft, cohesive sediments like clay or silt in deepwater environments (up to 3,000 meters). It is used when undisturbed core samples are needed to assess soil stratigraphy and geotechnical properties for foundation design.
How It Works
The piston corer consists of a weighted tube with an internal piston, deployed from a vessel. As the tube penetrates the seabed, the piston remains stationary, creating suction to collect an intact core sample up to 6 meters long. Our equipment, compliant with ISO 19901-8, ensures minimal sample disturbance, preserving the sediment’s natural structure.
Advantages
-
High-Quality Samples: Produces undisturbed cores, critical for accurate seabed analysis.
-
Deep Penetration: Effective in soft sediments at significant depths.
-
Versatility: Suitable for a range of offshore projects, from oil platforms to wind farms.
Real-World Soil Samples
In a recent North Sea project, our piston corer retrieved a 5-meter core from a clay-rich seabed. The sample revealed layered clay with low shear strength, guiding the design of suction pile foundations. The intact core, with clear stratigraphy, was analyzed in our Ho Chi Minh City laboratory, ensuring data reliability.
Vibrocorer: Power for Dense Sediments
When to Use Vibrocorer
The vibrocorer excels in sampling denser sediments, such as sands, gravels, or stiff clays, in shallow to medium depths (up to 500 meters). It is preferred for projects requiring rapid sampling in heterogeneous seabeds, such as pipeline route surveys.
How It Works

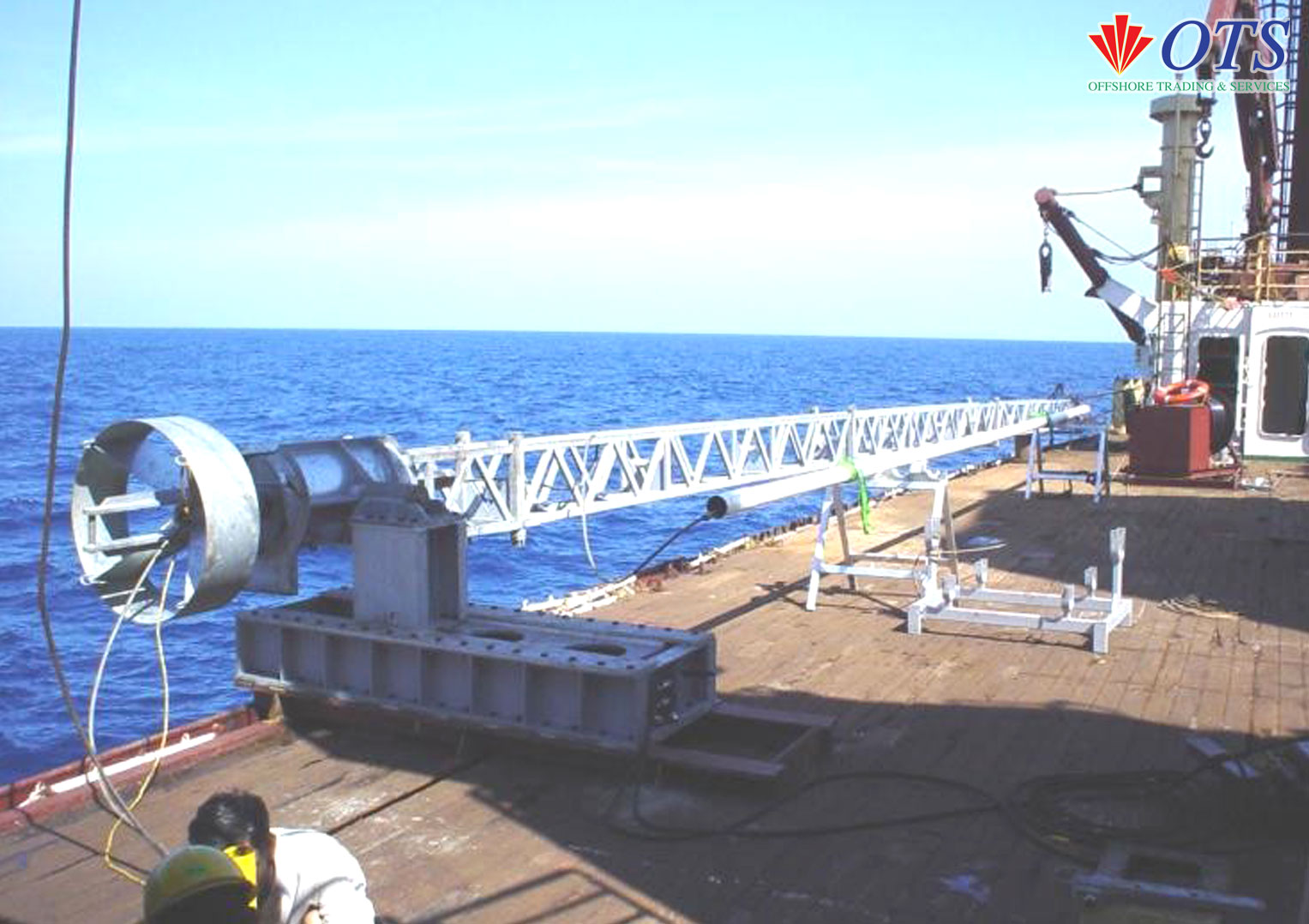

The vibrocorer uses a vibrating mechanism to drive a core tube into the seabed. The vibration reduces sediment resistance, allowing penetration up to 6 meters. Our vibrocorers, equipped with advanced frequency control, comply with DNVGL-RP-C212 (Offshore Soil Mechanics), ensuring efficient sampling without compromising sample integrity.
Advantages
-
Effective in Dense Soils: Penetrates challenging sediments where piston corers may struggle.
-
Speed: Faster deployment, ideal for time-sensitive projects.
-
Robust Design: Handles mixed seabed conditions, ensuring consistent results.
Real-World Soil Samples
During a pipeline survey in the Gulf of Thailand, our vibrocorer collected a 4-meter core from a sandy seabed with gravel layers. The sample showed high shear strength, confirming suitability for pipeline stability. The core’s clear layering was preserved, enabling precise seabed analysis for engineering decisions.
Why Choose OTS for Soil Sampling?
OTS Offshore combines cutting-edge piston corer and vibrocorer technology with over a decade of experience serving global oil and gas leaders. Our facilities in Ho Chi Minh City, Vietnam, are equipped for comprehensive soil sampling and laboratory analysis, meeting ISO 19901-8 and DNVGL-RP-C212 standards. Our certified geotechnical engineers ensure data accuracy, supporting safe and cost-effective offshore designs.
